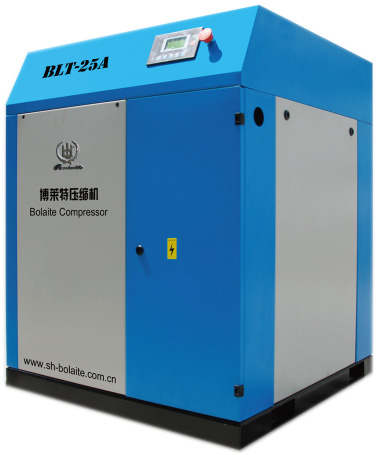

| BLT-25A |
|
|
Screw Compressor |
| 型號 |
Model |
|
BLT-25A |
| 排氣溫度 |
Displacement temperture |
風冷
環境溫度 |
Air-Cooling:
(Ambient temperature+15℃ |
| 排氣壓力 |
Working Pressure |
Bar |
0.7/0.8/1.0/1.3 |
|
排氣量 |
Air Displacement |
m3/min |
3.20/3.00/2.70/2.30 |
| 外型尺寸 |
Dimension(L×W×H) |
mm |
1100×865×1145 |
| 驅動方式 |
Drive method |
|
皮帶傳動 Multivee belt |
| 啟動方式 |
Starting method |
|
Y-▲啟動 Starter |
| 冷卻方式 |
Cooling Model |
|
風冷 Air-Cooling |
| 壓縮級數 |
No. of compression stage |
|
單級 Single stage |
| 電源 |
Electricity |
V/ph/Hz |
380/3/50 |
| 環境溫度 |
Ambient temperture |
|
-5～+45℃ |
| 噪音 |
Noise level |
dB(A) |
64±2 |
| 功率 |
Motor Power |
kw |
18.5 |
| 潤滑油量 |
Lubricant |
L |
15 |
| 重量 |
Weight |
kg |
410 |
| 出口管徑 |
Air Outlet pipe Diameter |
Lnch/mm |
G1” |
|
|
|
